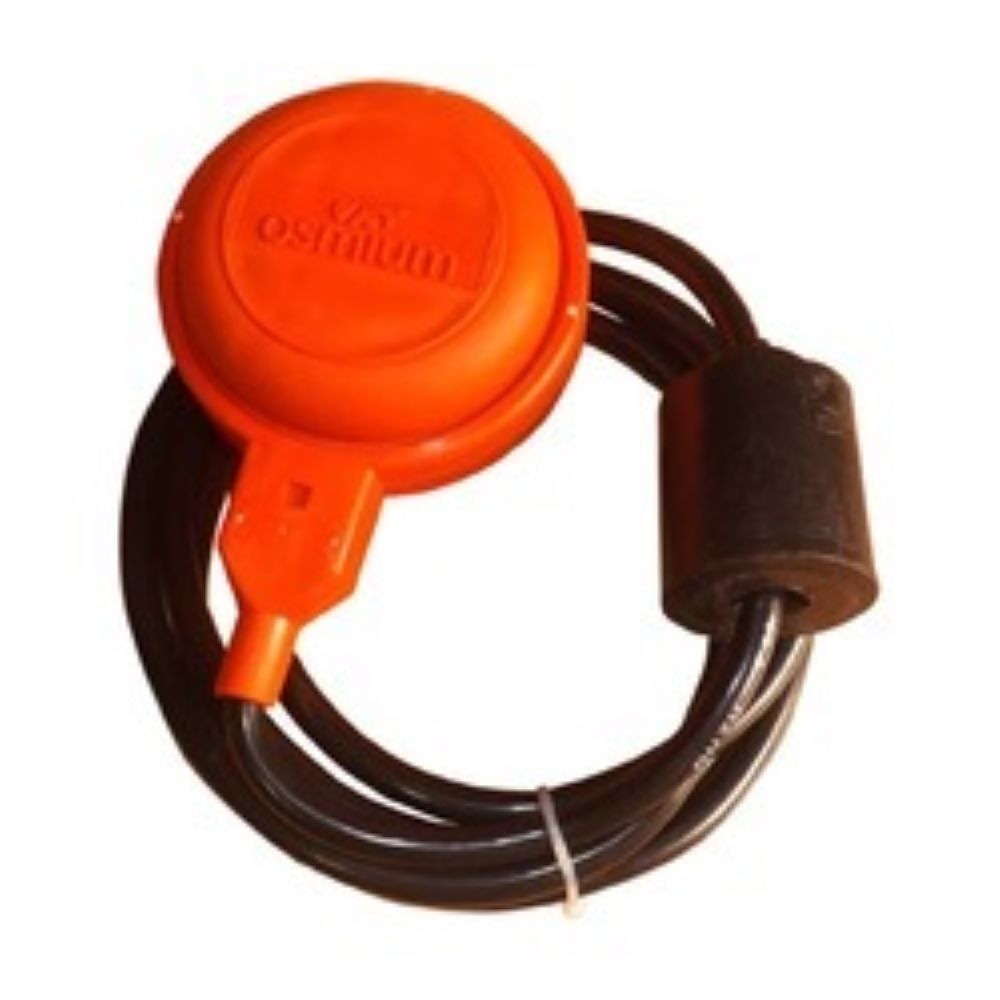

Cable Float Switch

Product Description

As per the modern industry trends and advancements, we are able to manufacturing and exporting a huge array of Cable Float Switch. All our switches are wisely manufactured by employing set international standards of functionality. These switches are the best solution for non-flammable liquids present at 250 volts. Offered switches are the alarming devices that have reliable and accurate functioning. The range of Cable Float Switch is available at market leading prices.

Product Detail

1.Auto-fill-water modes

connect the controls blue line to electric.pump,black line is connected to zero-line,biack,brown line can not be connected and should be insulated.

2.Auto-drainage and lack-water protection modes

connect the controls brown line to electric pump,the black line is connected to the zero-line,the blue line can not be connected and should be insulated.

3.Fill-water and drainage auto-switch mode

The chart is fill-water and drainage auto-switch mode.This electric connection chart synthesize by automatic fill-water and auto-drainage.

Features:

 Cable Float Switch

• Easy Installation
• Cable Length available in 3 Mtr, 5 Mtr, 10 Mtr
• Max Temp : 70 Deg C
• Microswitch having NO + NC +COM of 240 VAC, 15 AMP
