Water Level Indicator

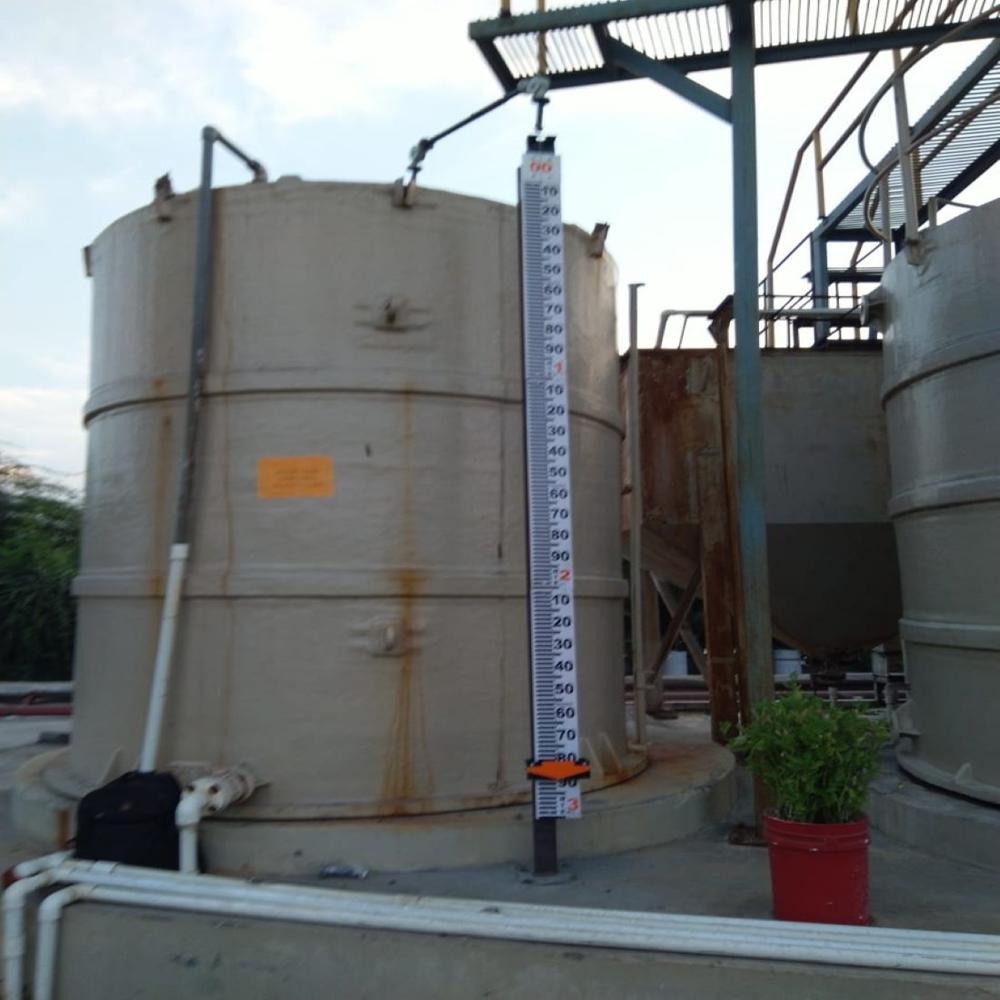

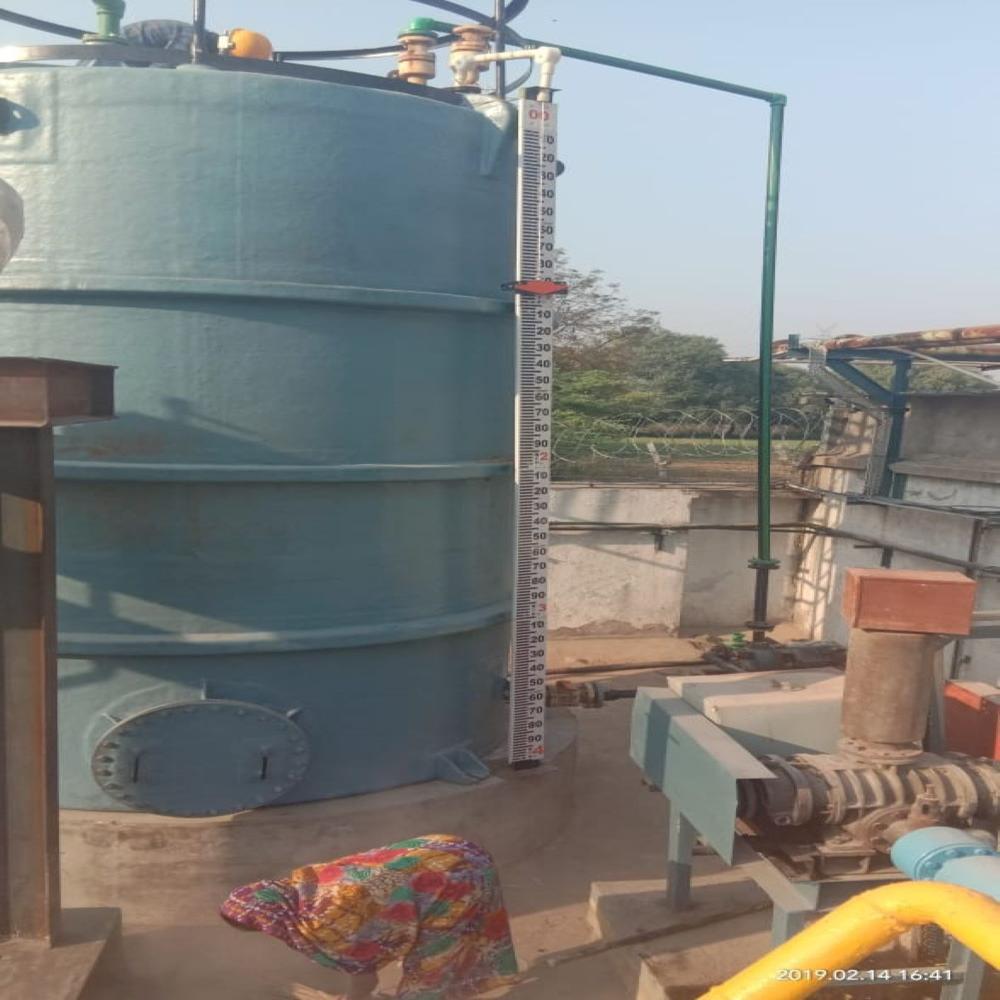

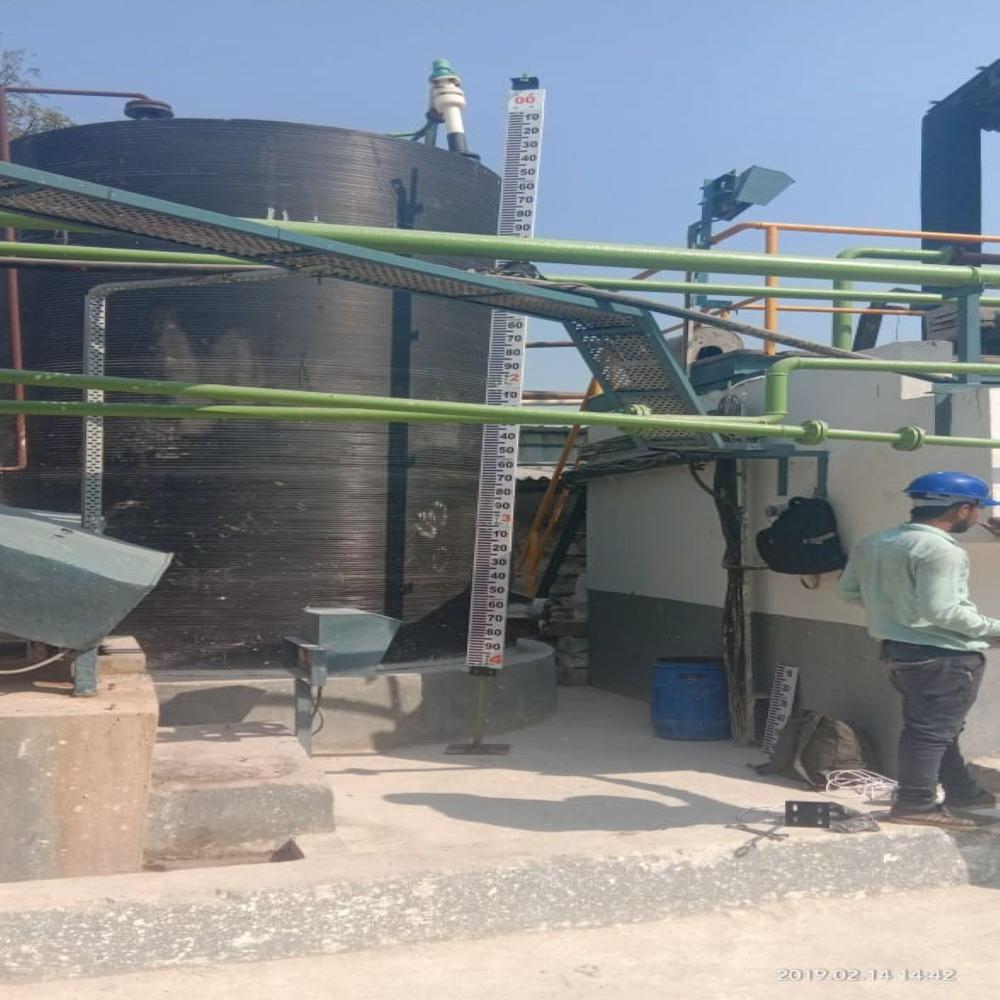

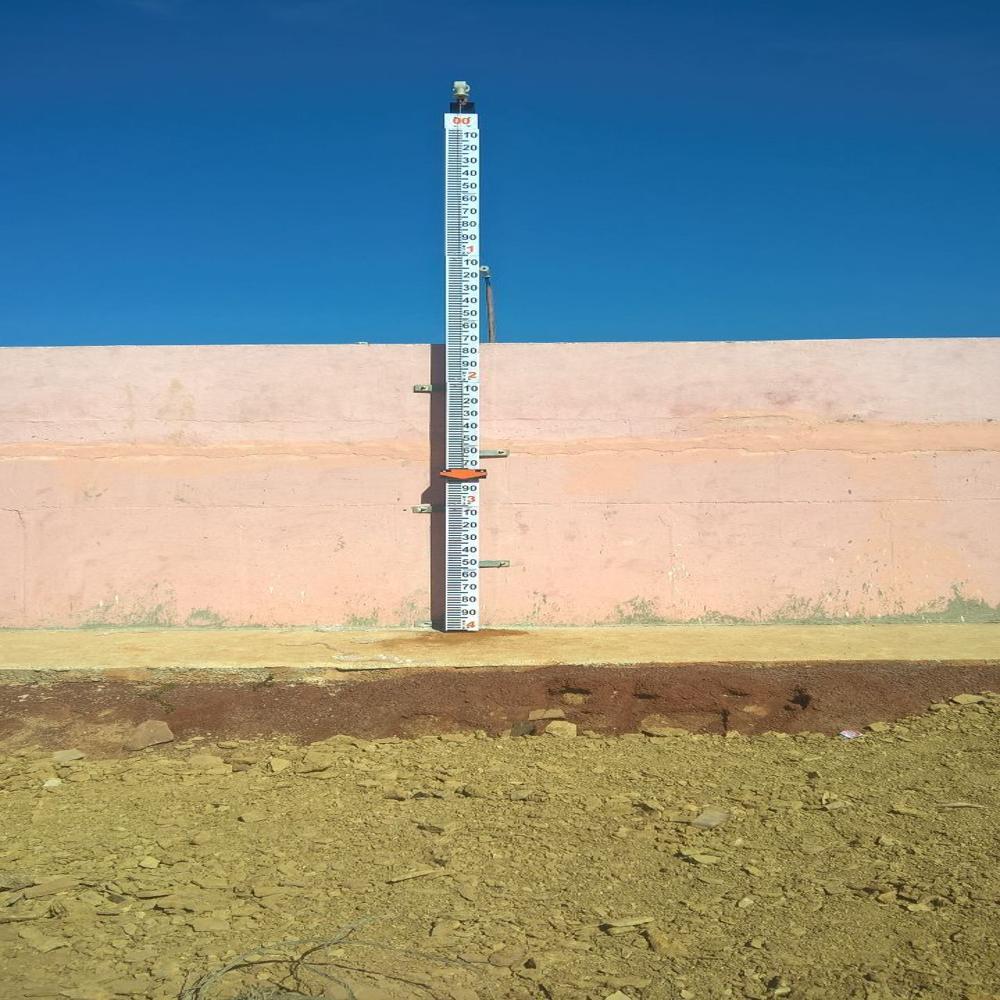

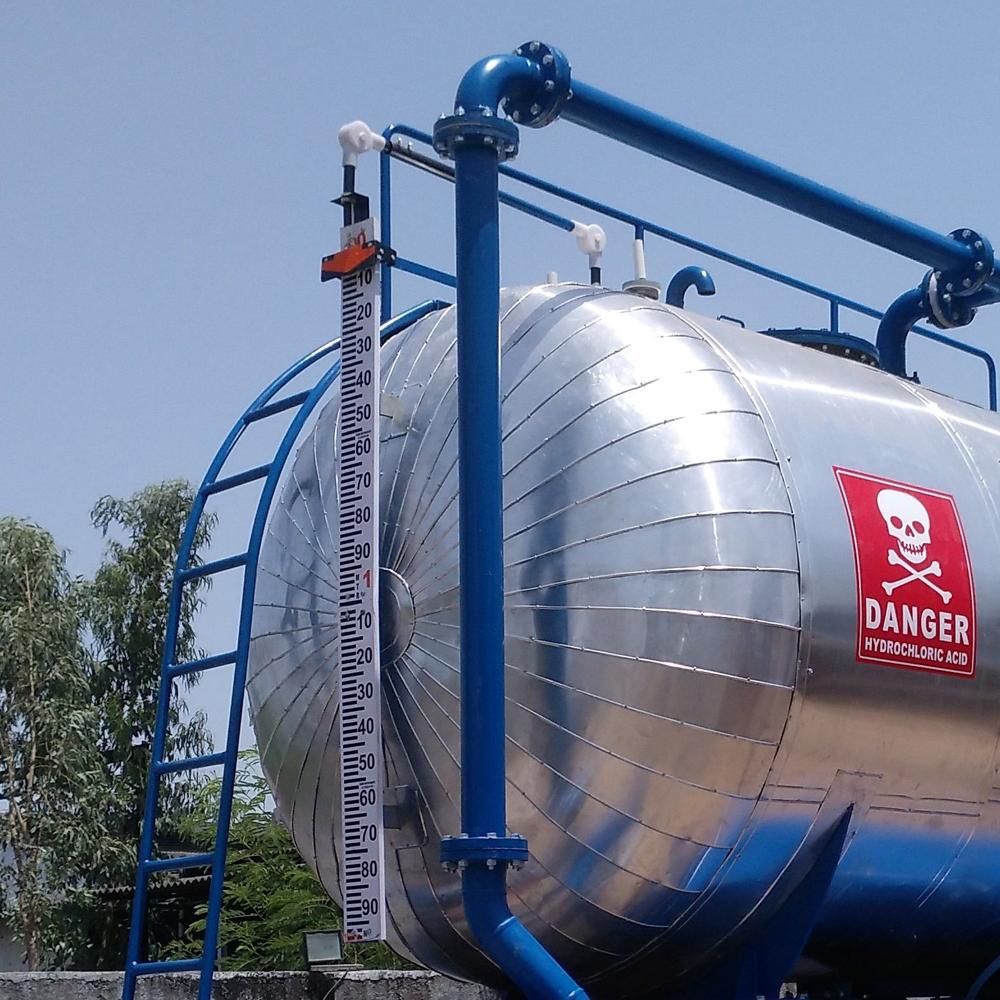

KABIR Make Float  Board types Level Gauge are used for fluid level measurement in several industries The Float which is of course the most important element of the instrument In fact its structural design volume displacement weight and buoyancy force are all taken into careful consideration when a float is specified for a particular applicationOften A typical Float  Board type Level Gauge is consist of a Float dust proof Pulley Housing Pointer cradle with nylon and 150 mm width screen printed Aluminum Scale This instrument is an absolutely reliable and accurate system for liquid level measurement in tall overhead tanksThis type of Float  Board type Level Gauge basically work on the principle of buoyancy The float is well connected to the counter weight along with a pointer through flexible wire ropes The pointer slides along the guide against a graduated scale to indicate corresponding levels inside the tank   Most often the Float  Board type Level Gauge finds its application in underground and over head storage tanks They are also used in storage tanks of petroleum products like furnace oil diesel and lube oil and so on Also it is used in storage of vegetable oils molasses silicates glucose and so on In short the Float  Board type Level Indicator is most widely used in all non hazardous and non pressurized tanks For Tank height more than 10 meter we provide Anchor Plated with Anchor Housing for Installing the Anchor Rope

KABIR  also offers Vapor Seal Type Float  Board type Level Gauge which is generally used for tanks having corrosive fumes  vapors OR N2 Nitrogen Purging tanks In this level gauge the float is connected to a magnetized counter weight moving in a sealed SS OR PVC pipe  which drives a follower magnetized bi  color capsule inside a glass tube to indicate liquid level

The features of a typical Float  Board type Level Gauge can be detailed as follows It has dust proof pulley housing It comes with an SS bush bearing for a smooth rotation of pulley The pointer cradle has 6 nylon rollers and adjustable brackets for easy mounting It has a non corroding aluminum board with controlled cross section geometry and a wide painted scale with prominent multi color marking The indicator of course has a slack float with large diameter for higher accuracy This level indicator is very easy to transport as well as install Height up to 25 meters

Float  SS 316  PP  SS with PTFE Coated Rope  SS 304  SS 316  PP  PTFE  SS with PTFE Coated Pulley  Aluminum  SS 316  PP Pulley Housing  Aluminum  PP Telescopic Pipe  MS  SS  PVC Board  Aluminum  FRP  SS 316 Flanges  MS  SS  PP Pointer  MS  SS  FRP Coated MS Anchor Plate  SS 316 Anchor Housing  MS  SS 316 Fasteners  GI Plated  SS Bracket  MS  SS
